Description

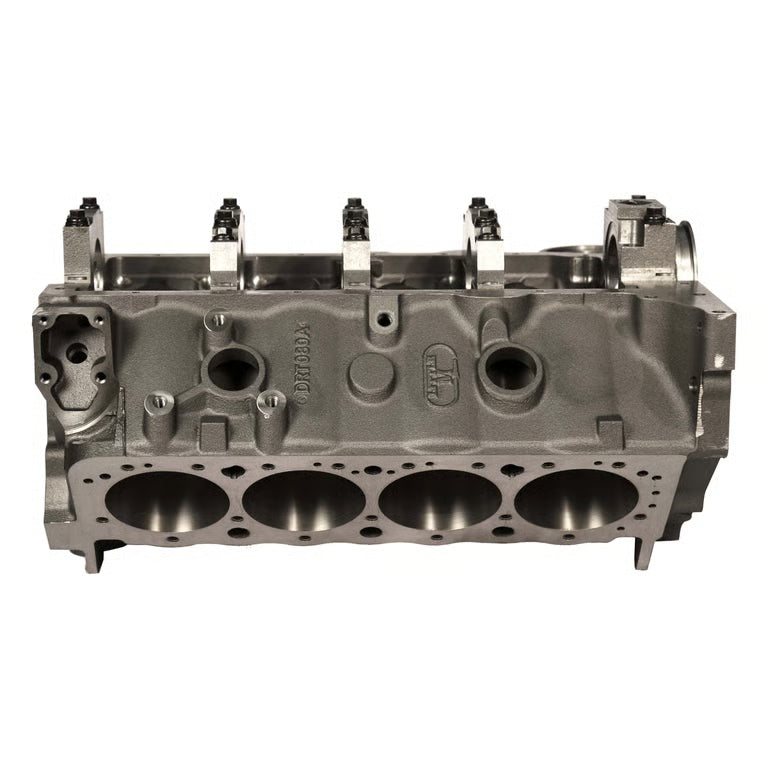

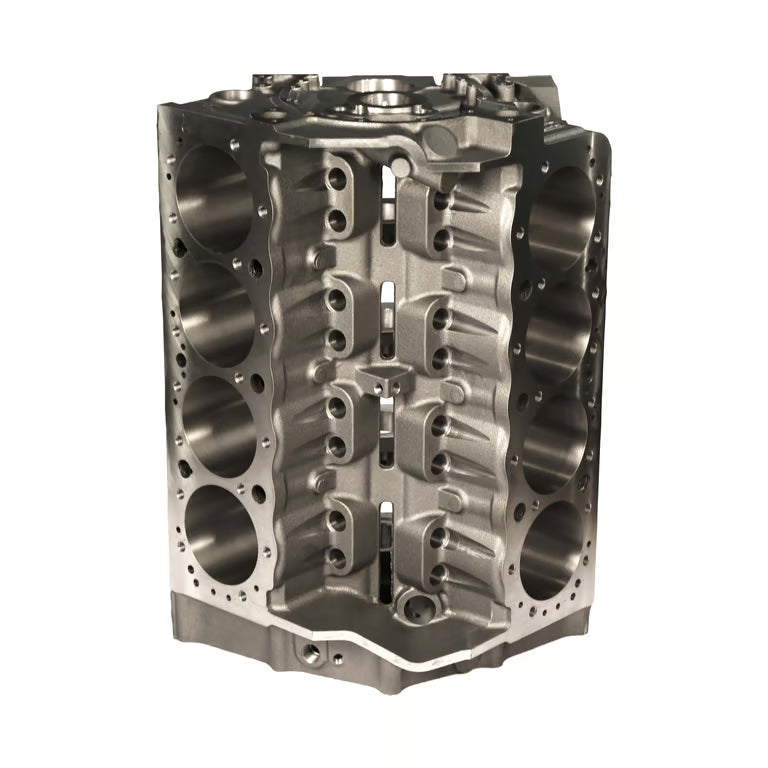

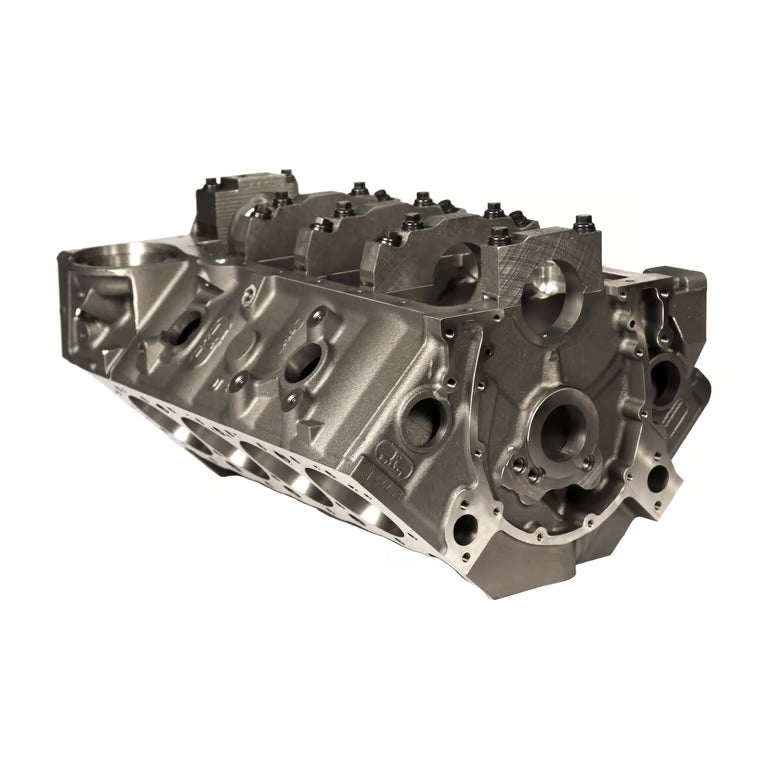

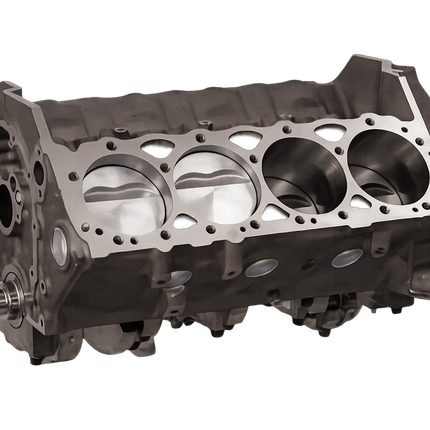

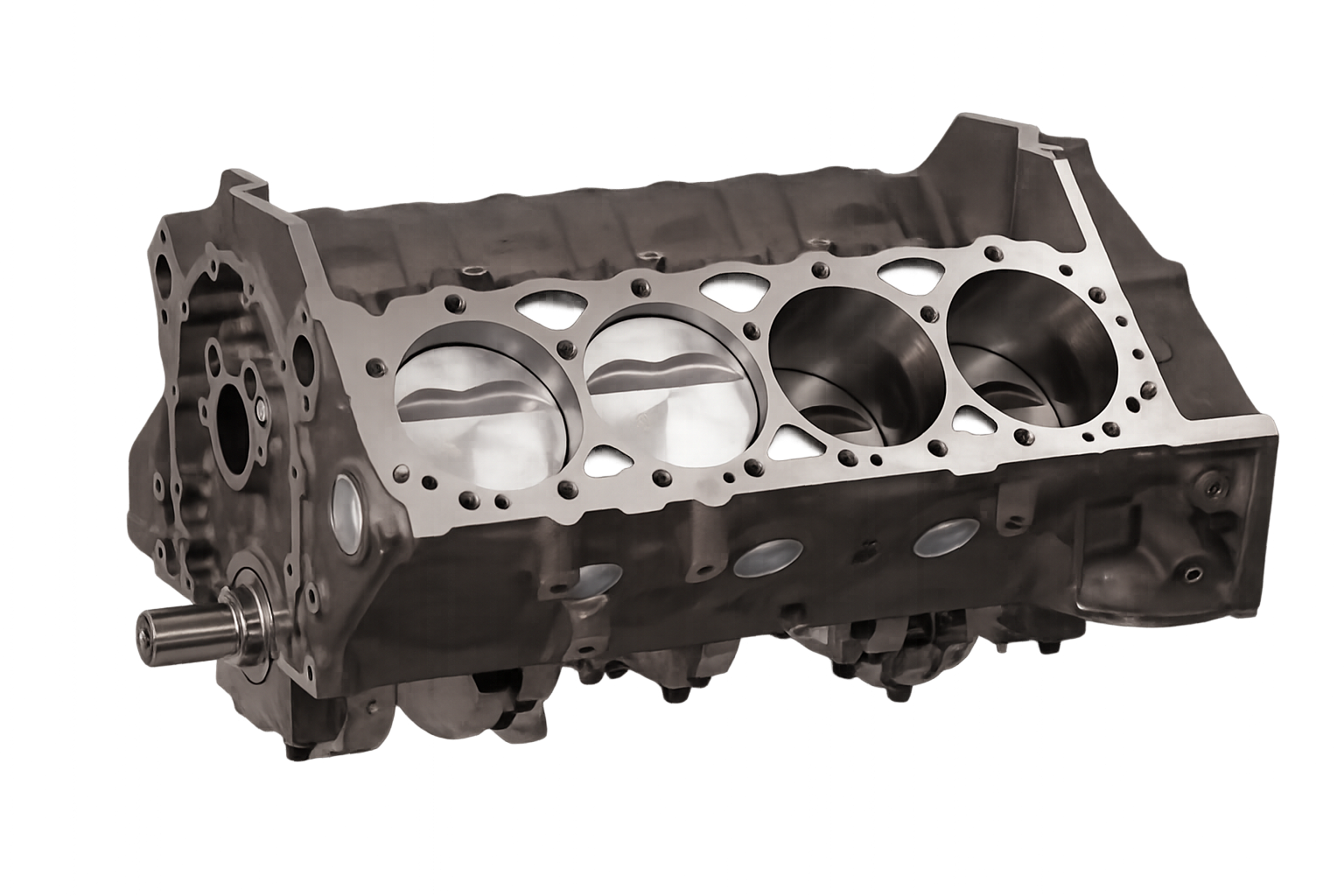

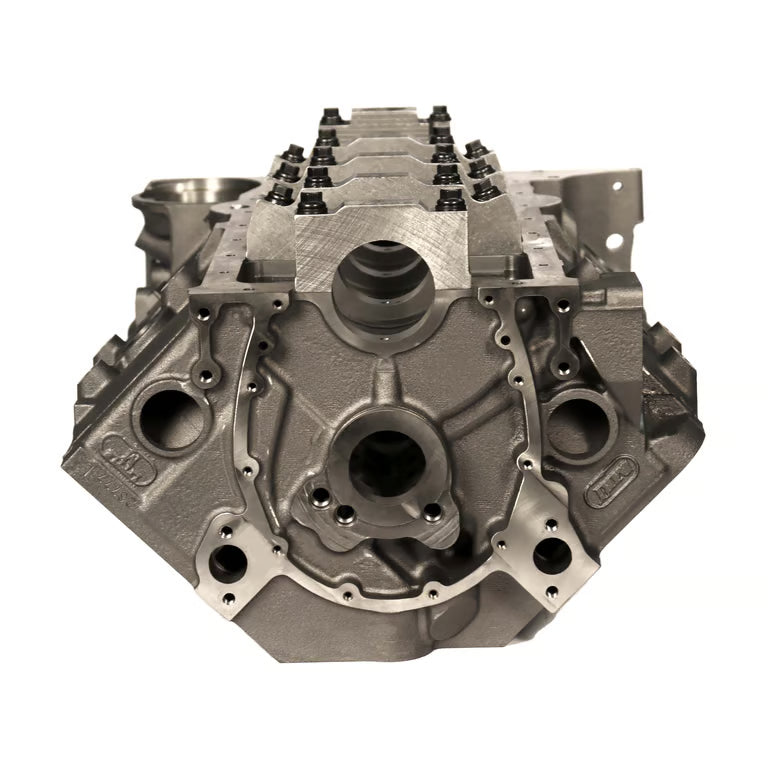

434 DART Little M2 Chevy Small Block Engine, short block
- Main: 400
- Bore: 4.125
- Deck: 9.025
- Ductile iron main cap
Crankshaft: Scat SCA4-400-4000-6000-21LW
-
F-43 Series, 4.000 in Stroke, Internal Balance, Forged Steel, 2-Piece Seal, 400 Mains
Connecting rod: Eagle CRS6000B3DL19
- Connecting Rod, H Beam, 6.000 in Long, Bushed, 7/16 in Cap Screws, ARPL19 Bolt, Forged, Steel
Piston and ring: ICON IC849.STD
- ICON Forged Piston, Chevy 434 Rod 6.000 Flat Top +4.8cc 2V
Race bearing series H
Precision machining – CNC Rottler & diamond honing
-
Machining on CNC Rottler: Our Rottler machines ensure precise and reproducible machining. Machining is performed in parallelism (square deck), which means that each machined surface remains parallel or perpendicular to the crank axis.
-
Diamond honing: Use of diamond stones for uniform honing, optimal surface finish and increased durability.
This level of precision guarantees engine performance.
